Heavy-Duty Indicator Series for 8, 22 and 30mm Applications from Dialight
January 13, 2022
Dialight’s heavy-duty panel mount indicators are designed for rugged environment applications, such as power, status or warning indication in manufacturing, construction, mining and oil and gas equipment.

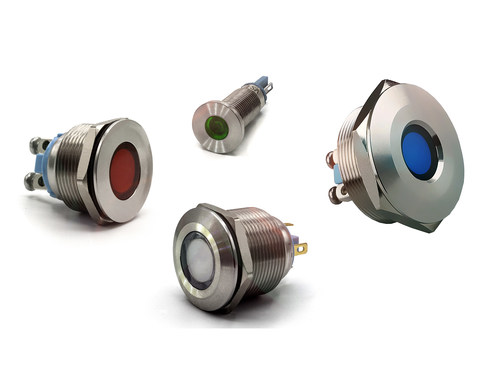

The 620, 621, 622 and 623 Series each feature a durable, brushed stainless steel housing and nut for a sophisticated look that matches their performance. Designed for both indoor and outdoor applications, each product is corrosion resistant and dirt-, dust- and water-tight, including immersion for depths up to 1 meter. All four are also RoHS compliant and carry IP66/67, IK10 and NEMA 4X certifications.
Each product boasts a storage and operating temperature range of -25°C to +70°C (-13°F to 158°F) and is available in 3 VDC, requiring an external resistor, or 6, 12 or 24 VDC with integrated internal resistor.
- 620 Series for 8mm mounting holes with solder terminals. Available in red, green, yellow and blue, the 620 series features a flat profile
- 621 Series, Dialight’s first tri-color panel mount indicator, for 22mm mounting holes with solder terminals. The 621 comes with red/green/blue LEDs for a variety of color display options, and a raised, bevel edge for a more aggressive profile
- 622 Series, also for 22mm mounting holes, but with a flat profile and screw terminals. The 622 is single-color, available in red, green, yellow and blue
- 623 Series for 30mm mounting applications, featuring a beveled edge and screw terminals, available in red, green, yellow and blue
