Hammond Manufacturing: New ACE Series Aluminum Command Enclosure

Hammond Manufacturing: ACE Series Aluminum Command Enclosure

August 12, 2025

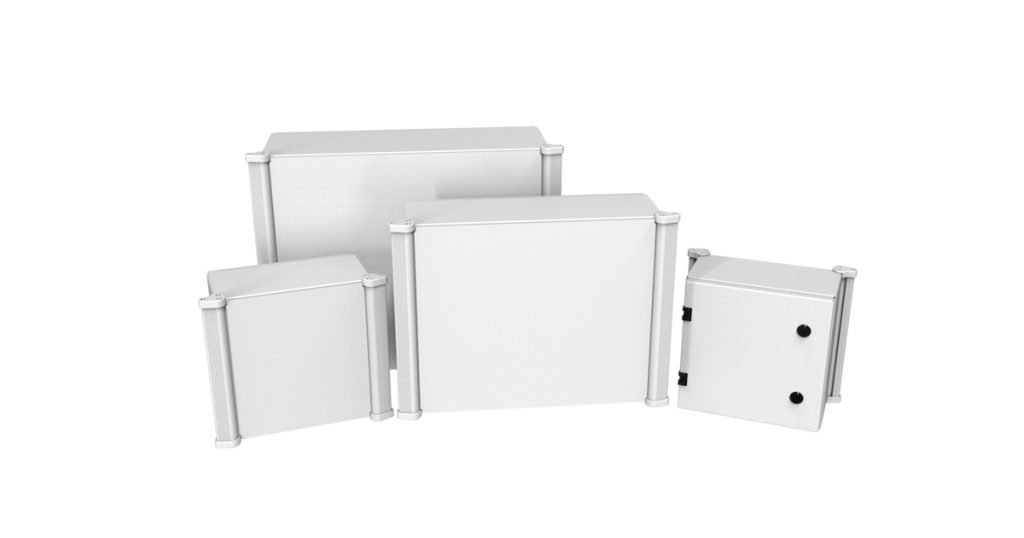

Introducing the ACE Series aluminum command enclosure from Hammond Manufacturing, designed to enclose electronic controls, instruments and components in indoor environments where dirt, dust, oil and water may be present. Ideal for use with suspension systems, this enclosure has a full front mounting space that provides for ideal operator interfaces, with smooth flush surfaces and attractive finishes which compliment high tech equipment.

ACE Series Standards

  • UL 508A Type 12
  • cUL Type 12
  • Complies with
    • NEMA Type 12 and 13
    • IEC 60529, IP54

ACE Series Construction

  • Enclosure body and door formed from 0.081″ Type 5052 H-32 aluminum
  • Smooth, continuously welded seams ground smooth.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Reversible rear door is secured with slotted quarter turn fasteners.
  • Enclosure features vertical aluminum profiles on each side for easier rotation/manipulation.
  • Door front panels are 3mm aluminum.
  • Oil resistant gaskets are permanently secured.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Quarter turn latches zinc diecast with black epoxy finish.
  • Zinc diecast hinges with black epoxy finish.
  • Fastening is recommended with optional Tara Plus or 50/80 suspension systems.
  • Heavy duty re-inforcing plate included.

ACE Series Finish

  • Enclosure, side extrusions, and front panel all finished in RAL 7035 gray powder coating.
