Hammond Manufacturing: C3SC Series Type 3/12/4 Mild Steel Junction Box

March 1, 2023

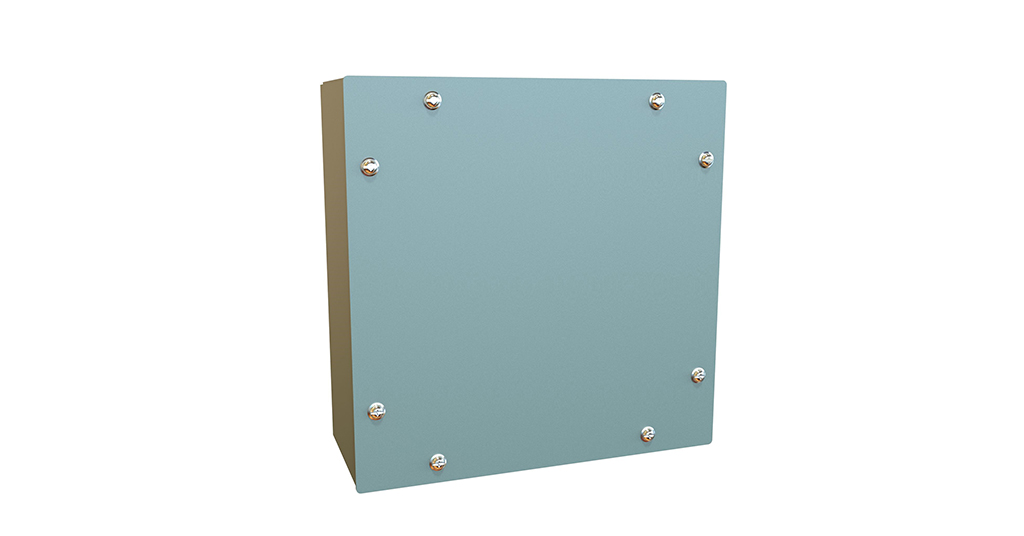

Introducing the C3SC Series Type 3/12/4 mild steel junction box, which is designed for use as a wiring box, junction box, terminal or pull box in indoor or outdoor applications where subject to windblown dust or rain. The standards that the junction box series complies with include UL 508A, cULus per CSA C22.2 No 94 and NEMA – all type 3, 4 and 12 -and IEC 60526, IP66.

C3SC Construction

  • 14 gauge steel body up to 24”x24”; 12 gauge body when 30”x30” or larger
  • 14 gauge steel cover up to 12”x12”; 10 gauge cover when 16”x16” or larger
  • Smooth, continuously welded seams without knockouts, cutouts, or holes
  • Captivated stainless steel cover screws thread into sealed wells
  • Seamless poured-in place gasket
  • No provision for inner mounting panel

C3SC Finish

  • Enclosure and cover are finished with an ANSI 61 gray powder coating inside and outside
